SJFM PLASTIC EXTRUSION COATING MACHINE
SJFM PLASTIC EXTRUSION COATING MACHINE

Moved picture on your mouse, magnifying the effect of visible product
Equipment advantages:

  1 .Unwinding unit: adopt double, constant tension and auto edge rectification unwinding unit.
  2. Extrusion and lamination unit: Combine the extrusion and lamination parts feeely, to realize the three-dimensional adjustment.
  3. Edge and breadth trim unit: adopt servo system to control the edge and breadth trim systems, to ensure the high precision and stable operation.
  4. Winding unit: The friction and central winding,two winding forms are alternative.
  5. Easy and convenient control system, to make sure high safety and good perormance in low speed position.
  6. Apply to coat various woven sack, flexible intermediate bulk containers(Fibc's), flat container fabric(U-panel FIBC), tarpaulin, geo-textiles, cement bag and som other woven fabric.


SJFM PLASTIC EXTRUSION COATING MACHIN

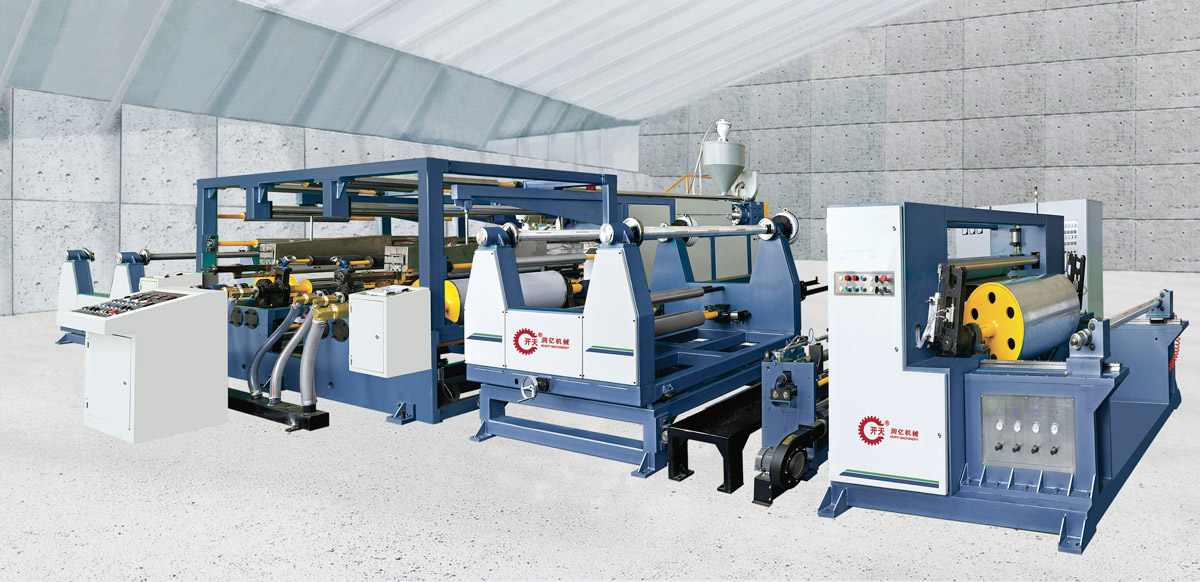

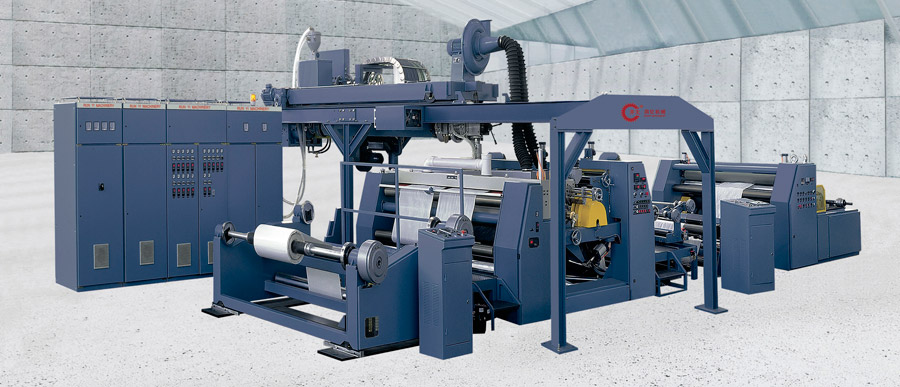

Finished Case:

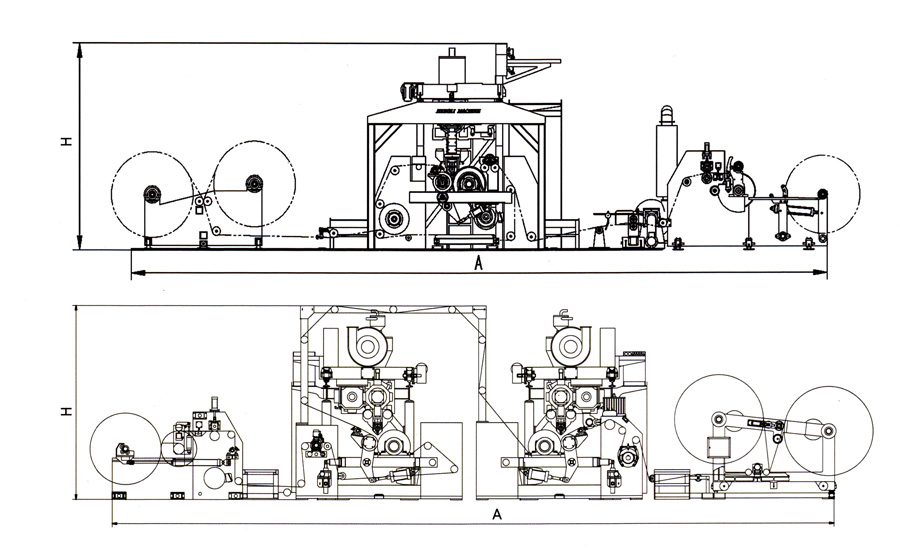

Product structure diagram:

Technical Parameters:

Screw diameter(mm)

Φ65

Φ90

Φ100

Φ100

Φ110

Φ120

Φ150

Max.extrusion volume(kg/h)

180

240

280

320

350

550

825

Working width(mm)

800(Double T-Die)

1500

2200

2400

2400(Double T-Die)

4000

6000

Max.diameter of winding and unwinding roll(mm)

Φ1200

Φ1200

Φ1200

Φ1200

Φ1200

Φ1000

Φ1000

Max.line speed(m/min)

160

160

140

120

120

80

60

Laminating thickness(mm)

0.015-0.08

0.015-0.08

0.02-0.08

0.02-0.08

0.02-0.08

0.02-0.08

0.02-0.08

Dimensions(L×W×H)(mm)

12300×9000×3000

11000×9000×3200

11000×9500×3200

11000×10000×3200

14300×10000×3000

11000×12000×3200

12000×14000×3200

Weight(T)
30
28
32
35
40
40
55
System installation power(kw)
290
160
200
240
330
310
395

Normal electricity consumption(kw)

205

110

140

170

230

217

280


Specification and dimensions are subject to change without prior notice.
